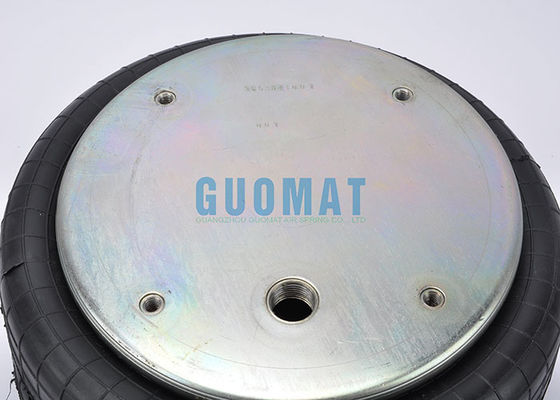

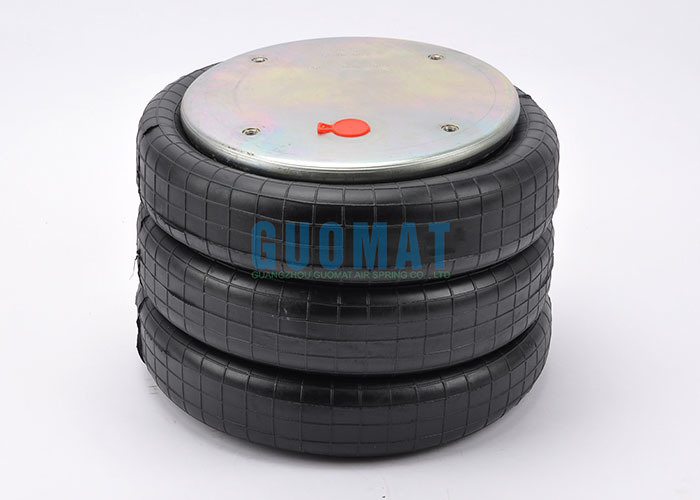

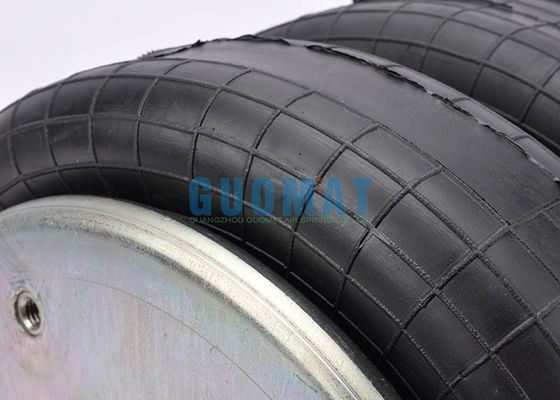

W01-358-7808 Firestone Triple Convoluted Air Actuator Style 313 Rubber Air Suspension

Detalhes do produto:

Lugar de origem:	Guangzhou, China
Marca:	GUOMAT
Certificação:	ISO/TS16949:2009
Número do modelo:	3B7808

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	5pcs
Preço:	USD69.9-79.9/PC
Detalhes da embalagem:	Caixa de caixa forte ou requisito de clientes
Tempo de entrega:	3-7 dias úteis
Termos de pagamento:	L/C, T/T, Western Union ou outros
Habilidade da fonte:	1000pcs/semana

Contato

Descrição de produto detalhada

Modelo:	Mola de ar complicada tripla	Material de mola:	Borracha
Qualidade:	100 % testado	FUCÇÃO:	Reduzir o choque
Material:	Fole de borracha e tampa de alumínio	Altura de projeto:	282mm
CONTITECH:	FD 330-22 364	Goodyear:	2B12-313
Destacar:	Firestone triple convoluted air actuator , Rubber air suspension actuator , Style 313 air suspension spring

W01-358-7808 Firestone Triple Convoluted Air Actuator Style 313 Rubber Air Suspension

Product Information

Product Name:	Air Spring
Description:	Suspension Air Spring
Model NO.:	3B7808
MOQ:	1 PCS
Warranty:	12 Months
Material:	Rubber
Package:	Carton
Payment:	L/C T/T West Union
Port of shipment:	NINGBO, SHANGHAI, TIANJIN, GUANGZHOU, SHENZHEN
Shippment:	By sea, By air, by DHL Fedex

Specifications and Detailed Technical Parameters: 3B7808

Nut/blind nut
Top plate screw (nut) teeth: 4pcsx3/8-16UNC
Bottom cover plate screw (nut) teeth: 4pcsx3/8-16UNC
The screw center distance of the Top cover plate: 158.8 mm
The screw center distance of the bottom cover plate: 158.8 mm
Air hole/air inlet/air fittings
Air hole/air inlet: 1/4NPT
Rubber Bellows
Top plate diameter (width): 289 mm
Diameter (width) of the bottom cover plate: 289 mm
Rubber bellows natural diameter: 356mm
Natural height: 282mm
Bumper block/bumper block
With bumper block
Belt loop/Belt loop
With belt loop: without belt loop

OEM Number/Cross Reference Number

Firetsone	W01-358-7808
Firetsone Style	313
Contitech	FD 330-22 364
Goodyear	2B12-313
Goodyear	2B12-459
Goodyear	578-93-3-350
Triangle	6319/4336
Airkraft	115061/3B-356

Additional Reference Numbers

Brake & Wheel M3533
EI Ride 8030170
Dayton 3547808
Leland Sc2031
Navistar 554801C1
Hendrickson S13157
Ridewell 1003587808C
SAF Holland 57007808
Truck stell 63640
Peerless 55000030

Related Parts

Part Number	Description
W01-358-7808	Blind nuts, 1/4 NPT
W01-358-7811	Blind nuts, 1/4 NPT, bumper
W01-358-7802	Blind nuts, 3/4 NPT
W01-358-7807	Blind nuts, 3/4 NPT, bumper
W01-358-7801	Countersunk steel bead rings,13/4 bolts, nuts, washers
W01-358-7900	Rubber bellows only
W01-358-1098	Blind nuts, 1/4 NPT
W01-358-7815	Blind nuts, 3/4 NPT
W01-358-1099	Countersunk steel bead rings,13/4 bolts, nuts, washers
