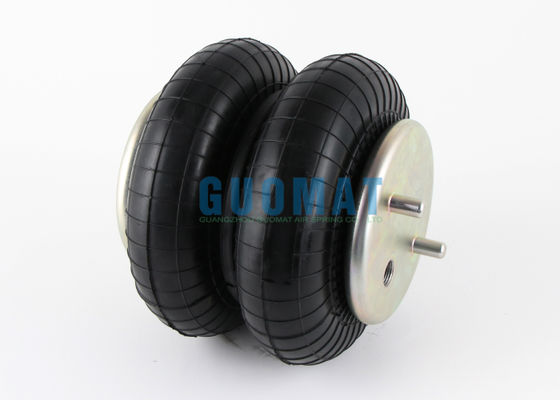

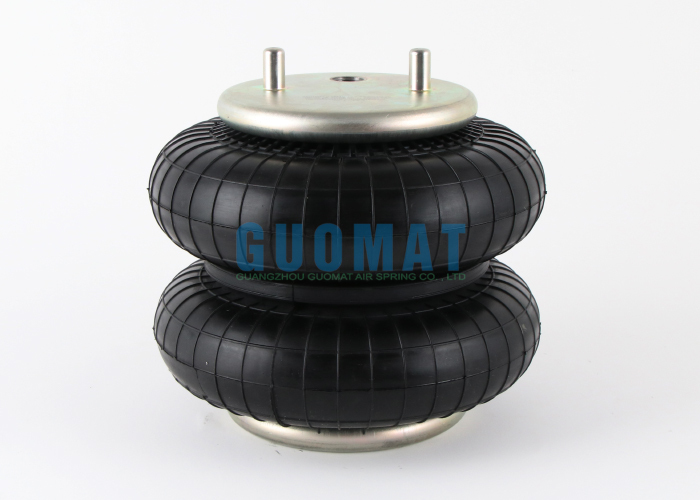

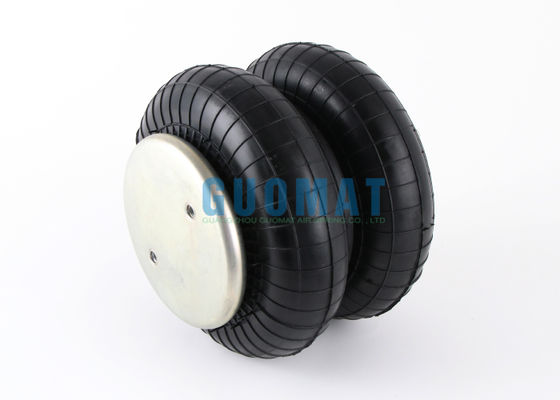

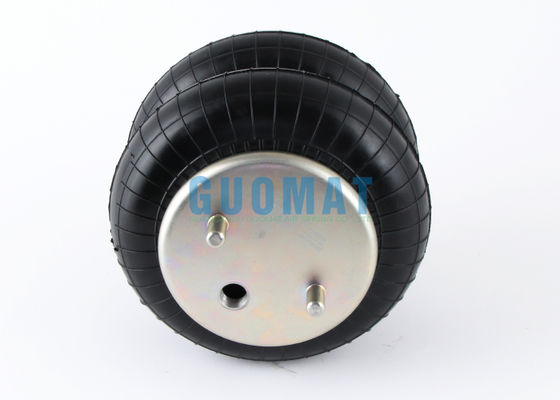

2B250190 GUOMAT Double Convoluted Air Spring 135mm Stroke Air Suspension Components

Detalhes do produto:

Lugar de origem:	Guangzhou China
Marca:	GUOMAT
Certificação:	ISO/TS16949, ISO9001
Número do modelo:	2B250190

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	5pcs
Preço:	USD59.9-69.9/PC
Detalhes da embalagem:	Caixa de caixa forte ou requisito de clientes
Tempo de entrega:	3-7 dias úteis
Termos de pagamento:	L/C, T/T, Western Union ou outros
Habilidade da fonte:	1000pcs/semana

Contato

Descrição de produto detalhada

Tipo:	Suspensão Spring Air Spring	Qualidade:	100 % testado
FUCÇÃO:	Reduzir o choque	Garantia:	12 meses
Marca:	Guomat	Modelo No.:	2B250190
Encaixe de ar:	G1/4 ou G3/4	Peso:	3,9 kg
Destacar:	GUOMAT double convoluted air spring , 135mm stroke air suspension , air suspension components with warranty

2B250190 GUOMAT Double Convoluted Air Spring 135mm Stroke Air Suspension Components

Suspension air springs are a core component of high-performance suspension systems that utilize compressed air as the elastic medium. By adjusting internal air pressure, they dynamically change the spring's stiffness and height, providing unparalleled ride comfort, exceptional handling stability, and flexible vehicle height adjustment. They are an ideal choice for suspension systems in modern high-end passenger cars, commercial vehicles, and specialized vehicles.

Product Specifications

Brand	GUOMAT
Model No.	2B250190
Type	Suspension Air Spring
Material	Rubber and Steel
Warranty	12 Months
Application	By Truck, By Trailer, By Car

Technical Data

Design height: 190mm

Maximum height: 220mm

Minimum height: 85mm

Effective diameter: 185mm

Cover diameter: 160mm

Maximum outer diameter of rubber: 263mm

Distance between threaded holes: 89mm

Distance between threaded holes and air holes: 40mm

Air holes: G1/4 or G3/4

Threaded holes: M10

Performance Data

Carrying Capacity	Inflation Pressure	0.2 MPa	0.3 MPa	0.4 MPa	0.5 MPa	0.6 MPa	0.7 MPa	0.8 MPa	Volume at 0.7MPa (dm3)
85 (mm)	Installation	681	1019	1355	1750	2069	2427	2811	3.26
117 (mm)	Installation	622	935	1291	1600	1937	2331	2641	4.36
149 (mm)	Installation	579	900	1224	1505	1839	2043	2450	5.38
181 (mm)	Installation	541	791	1060	1347	1625	1904	2187	6.2
190 (mm)	Installation	511	758	980	1275	1569	1834	2098	6.40

The Role of Air Springs Installed on Palletizers

Precision Cushioning and Shock Absorption (Core Function)
Scenario Description: After high-speed movement, the palletizer's robotic arm or gripper needs to suddenly stop and release the goods (such as boxed beverages or bagged materials). A direct, hard impact with the pallet generates a significant impact force, potentially causing product damage, pallet instability, or pallet damage.

Air Spring Function: Air springs are installed at the end of the palletizer's lifting mechanism or gripper to provide a controlled "soft landing" mechanism, transforming rigid collisions into flexible cushioning.
Automatic Height Adjustment and Balancing
Scenario Description: During the palletizing process, the goods on the pallet gradually increase in height.

Function of Air Springs: Air spring systems with height sensors automatically adjust internal air pressure and length to maintain constant, light pressure against the goods surface.
Effective Vibration Isolation
Scenario Description: Palletizers generate vibrations during operation that can affect placement accuracy.

Function of Air Springs: As excellent vibration isolation components, air springs effectively isolate high-frequency vibrations, providing a stable working platform.
Protecting Equipment and Reducing Maintenance Costs
Scenario Description: High impact forces can cause excessive wear on mechanical structures.

The function of air spring: By absorbing shock, air springs reduce stress on mechanical structures, lowering failure rates and maintenance requirements.
