| Lugar de origem: | GuangDong, China |
| Marca: | Goodyear |
| Certificação: | ISO/TS16949:2009 |
| Número do modelo: | 3B12-323 |
| Quantidade de ordem mínima: | Negociável |
|---|---|
| Preço: | Negotiable |
| Detalhes da embalagem: | caixa forte da caixa ou como a necessidade dos clientes |
| Tempo de entrega: | 2-8 dias do trabalho |
| Termos de pagamento: | T/T, Western Union, Paypal ou outro |
| Habilidade da fonte: | 1000pcs/week |
| material: | Placa de cobertura de aço, foles de borracha | Goodyear: | 3B12-323 |
|---|---|---|---|
| Furo do gás: | Adaptação de ar - 1/4 NPTF | Dente do parafuso: | 3/8-16UNC |
| Distância Center do parafuso: | 157,5 milímetros | Diâmetro da placa de cobertura: | 228,6 milímetros |
| Capacidade da pressão: | Um Pa de 0.2-0.8 M | Curso: | 120~457 milímetros |
| Peso líquido: | 7,5 quilogramas | Tamanho do pacote: | 33 x 33 x 22 cm |
| Realçar: | 3B12-323 Goodyear Air Spring,W013588043 |
||
3B12-323 Goodyear Air Spring Rubber Bags IRESTONE W013588043 For HENDRICKSON S-14795
Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 7.5 kilograms
Package size: 33 x 33 x 22 cm
Model: 3B12-323
3B12-323 Goodyear Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : Bolt or Stud – 1/2-13 or 1/2-20
Screw Center Distance of Top Cover Plate : 157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : Air Fitting – 1/4 NPTF
Screw Center Distance Between Gas Hole and Nut : 157.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 228.6 mm
Bottom Cover Plate Diameter: 228.6 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter : 300 mm
The Working Stroke : MIN 120 mm to MAX 457 mm
Maximum Height : 457 mm
Minimum Height :120 mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Number of top plate holes / studs: 2
Top plate diameter: 9
Top plate C to C diameter: 6.2 inch
Base plate hole bolt Qyt: 2
Base plate diameter: 9 inch
Diameter of base plates C to C: 6.2 inch
Base plate part number:
Base plate alignment: parallel
Bumper: no
bracket:
Minimum height: 4.8 inch
Maximum height: 18 inch
3B12-322 Goodyear Cross others OEM
Firestone 8043
Firestone W01-358-8043
Firestone W01 358 8043
Firestone W013588043
Goodyear 3B12-323,
Goodyear 3B12-323,
Goodyear 3B12-323
AUTOMANN
ABSP3B22R-8043
FIRESTONE
8043
W013588043
AUTOMANN
ABSP3B22R-8043
FIRESTONE
8043 W013588043
HENDRICKSON
S-14795

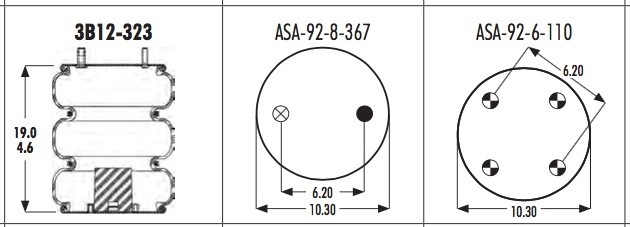

The drawing of GOODYEAR 3B12-323 air spring:
