14 1/2" x 1 Double Convoluted Air Spring FS 614-13 DS Contitech Suspension Air Bags

Detalhes do produto:

Lugar de origem:	CHINA
Marca:	GUOMAT
Certificação:	ISO/TS16949:2009
Número do modelo:	1B14.5X1T

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	6 unidades
Preço:	US$159.9-199.9/PC
Detalhes da embalagem:	Caixa de papelão forte ou conforme a necessidade dos clientes
Tempo de entrega:	3-7 dias úteis
Termos de pagamento:	L/C,D/A,D/P,T/T,Western Union
Habilidade da fonte:	1000 unidades/semana

Contato

Descrição de produto detalhada

Nome:	Mola de ar de borracha	Descrição:	mola de suspensão a ar
Tamanho do encaixe de ar:	G1/2	Tipo de mola de ar:	Tipo de cilindro único
Os foles numeram:	14 1/2''X1	Contitech:	FS 614-13DS
AVC:	50mm-175mm	Parafuso:	M10
Destacar:	14 1/2 inch double convoluted air spring , Contitech suspension air bags , FS 614-13 DS air spring

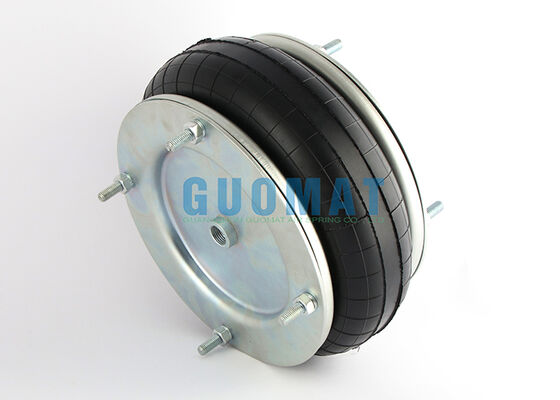

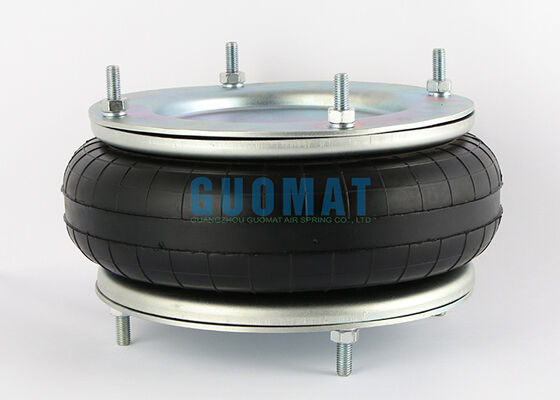

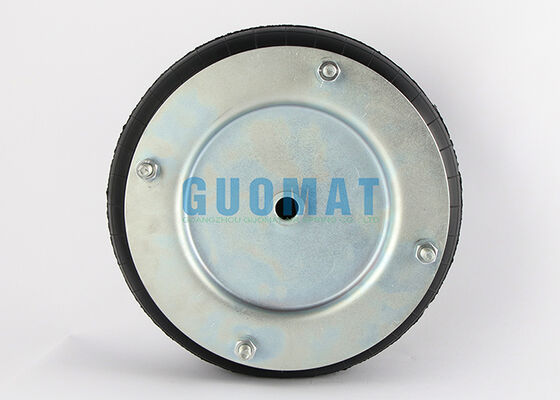

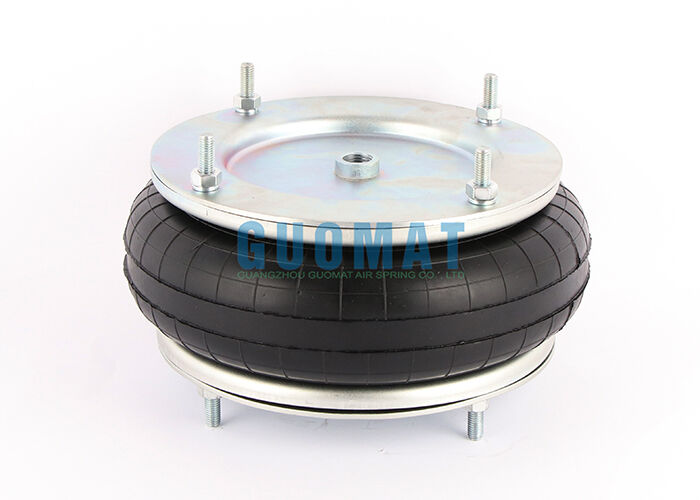

14 1/2" x 1 Double Convoluted Air Spring FS 614-13 DS

GUOMAT 2B14.5X2T is a premium double convoluted rubber air spring designed as a direct replacement for ContiTech FS 614-13 DS suspension air bags. Manufactured with high-quality natural rubber, reinforced cord fabric, and durable steel components, this air spring delivers outstanding load support, vibration isolation, and shock absorption for demanding industrial and suspension applications.

The double convoluted design provides a larger effective working stroke and higher load capacity than single convoluted air springs, making it ideal for equipment requiring superior flexibility and stable performance. The air spring automatically adjusts to varying load conditions, helping reduce vibration, minimize mechanical stress, and improve overall equipment efficiency.

Compatible Part Numbers

Continental ContiTech:

FS 614-13 1/2 M10 • Order No.: 68045 • FS 614-13 DS G1/2

Firestone:

WO1-R58-4063 / W01-R58-4063 • WO1 R58 4063 / W01 R58 4063 • WO1R584063 / W01R584063 • Style: 14 1/2x1

Dunlop:

FR: SP1543 • FR Bellows: 1412" x 1 • UK (Pneuride): PNP 3041401 19 • UK Bellows: 141/"x1

Other Manufacturers:

IMI Norgren: M/31141 • Oria: 14 1/2x1 • Parker: 9109064 • Parker Type: 14-1/2x 1 • Pneumatis: DB1417 • Pneumatis Bellows: 1412" x1 • Sopra: DB-1417 • Sopra Type: 141"x1 • Trelleborg Rubena: 14 1/2" x 1

Technical Specifications

Cover plate diameter: 310mm

Bolts: M10

Center distance between bolts: 282.5mm

Maximum outer diameter: 400mm

Maximum height: 175mm

Minimum height: 50mm

Pressure and Volume Specifications

Height H(mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol. V(cm³)
50	2826	3759	4785	5847	6771	7856	883
75	2673	3602	4581	5447	6266	7181	3411
100	2354	3189	3902	4721	5449	6223	5911
125	1902	2523	3143	3748	4277	4841	8087
150	1409	1830	2258	2679	3166	3534	9535
165	1122	1420	1724	2018	2492	2736	10331
