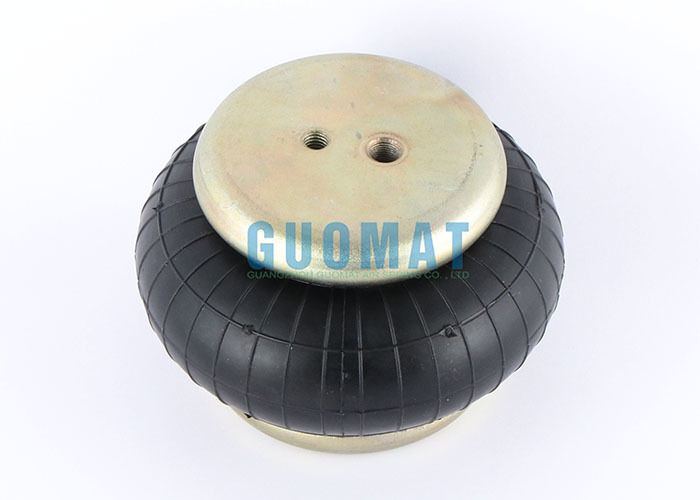

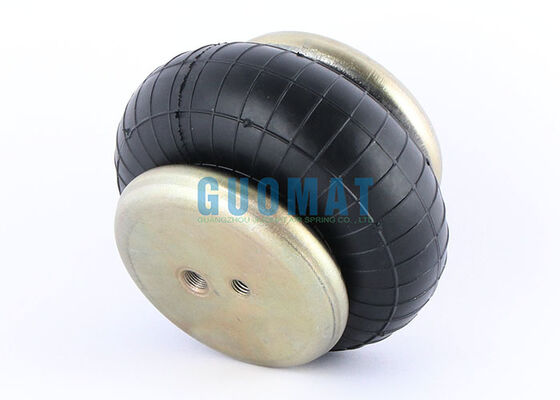

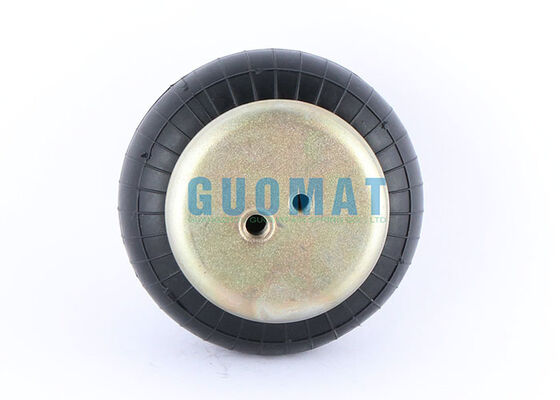

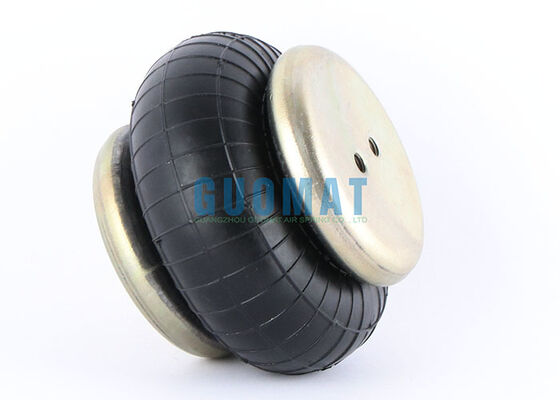

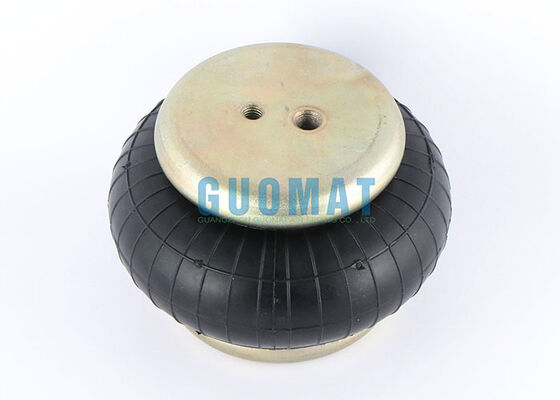

SP1B04 Phoenix Rubber Air Spring FS 40-6 1/8 M8 Contitech Air Suspension Isolator

Detalhes do produto:

Lugar de origem:	Cantão, China
Marca:	GUOMAT
Certificação:	ISO/TS16949:2009
Número do modelo:	1B4060

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	6 unidades
Preço:	$49.9-59.9/pc
Detalhes da embalagem:	Caixa de papelão forte ou conforme a necessidade dos clientes
Tempo de entrega:	2 a 8 dias úteis
Termos de pagamento:	L/C,D/A,D/P,T/T,Western Union
Habilidade da fonte:	1000 unidades/semana

Contato

Descrição de produto detalhada

Temperatura de trabalho:	-40℃+70℃	Nome do produto:	Mola de ar de borracha
OEM Não:	Fênix 1b20	Qualidade:	Alto
Compatibilidade:	Fácil de substituir	Tipo de mercadoria:	Mola de ar de borracha
Nome do item:	Sacos de ar de borracha industrial	Peso:	1kg
Destacar:	Phoenix Rubber Air Spring M8 , Contitech Air Suspension Isolator , FS 40-6 Rubber Air Spring

SP1B04 Phoenix Rubber Air Spring FS 40-6 1/8 M8 Contitech Air Suspension Isolator

GUOMAT 1B4060 is a high-performance single convoluted rubber air spring designed as a direct replacement for Phoenix SP1B04 and ContiTech FS 40-6 1/8 M8. Engineered for industrial vibration isolation, pneumatic actuation, and equipment suspension applications, this air spring provides excellent load-bearing capacity, shock absorption, and vibration control performance.

The 1B4060 design features a compact structure, making it ideal for installations where space is limited while maintaining reliable operational stability. Manufactured from premium natural rubber reinforced with high-strength cord fabric, the air spring offers exceptional durability and resistance to fatigue under continuous dynamic loading conditions.

Compared with traditional mechanical springs, it provides smoother operation, reduced noise transmission, and enhanced protection for sensitive machinery and production equipment.

Product Specifications

Brand: GUOMAT
Model Number: 1B4060
Material: Rubber, Steel
Warranty: 1 Year

Compatible Part Numbers

ContiTech: FS 40-6 CI G1/8 M8
ContiTech: FS 40-6 CI1/8 M8
ContiTech: FS 40-6 G1/8 M8
ContiTech: FS 40-6 1/8 M8
ContiTech Bellow: FS 40-6/FS40-6/FS406
Enidine: YM FS 40-6/YMFS40-6/YMFS406
Enidine: YM FS 40-6 CI G1/8 M8
Enidine: YI FS 40-6-000/YIFS40-6-000/YIFS406000
Enidine: YI FS 40-6 CI 1/8NPT 3/8-16UNC
Phoenix: SP 1 B 04/SP1B04
Goodyear: 1B5-800/1B5 800/1B5800
Goodyear Flex No.: 579-913-500/579 913 500/57991
Festo: EB-145-60/EB 145 60/EB14560
Enidine: YI-1B5-800/YI1B5 800/YI1B5800
Weforma: WBE100-E1/ WBE100 E1/ WBE100E1
Numatics: ASNS10-2-1/ASNS10 21/ASNS1021
Vigor: 1B 5001/1B5001
Vigor Bellow: 1B40-6/1B40 6/1B406
VKNTECH: 1B 4060/1B4060
VKNTECH Bellow: 1B40-6/1B40 6/1B406
EAA: 1E40-6/1E40 6/1E406
Volvo: AH-0188/AH 0188/AH0188

Technical Data

Cover plate diameter	88mm
Air Fitting	G1/4
Threaded hole	M8
Center distance between air vent and threaded hole in top cover plate	22mm
Center distance between threaded holes in bottom cover plate	22mm
Natural outer diameter	150mm
Design height	80mm
Minimum height	50mm
Maximum height	100mm

Industrial Equipment Benefits

The GUOMAT 1B4060 air suspension isolator effectively reduces machine vibration, minimizes transmitted shock loads, and improves operational stability. By isolating vibration sources from supporting structures, it helps extend equipment service life, improve product quality, and reduce maintenance costs. This makes it an ideal solution for modern industrial automation and precision manufacturing environments.
