S-300-4R YOKOHAMA Industrial Air Spring 206mm Natural Height Air Rubber With Waist Ring

Detalhes do produto:

Lugar de origem:	Cantão, China
Marca:	GUOMAT
Certificação:	ISO/TS16949, ISO9001
Número do modelo:	F-300-4

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1
Preço:	negociável
Detalhes da embalagem:	Caixa de caixa forte ou requisito de clientes
Tempo de entrega:	5-8 dias úteis
Termos de pagamento:	L/C, D/A, D/P, Western Union
Habilidade da fonte:	1000pcs/semana

Contato

Descrição de produto detalhada

Estrutura:	Quadra Enrolada	Qualidade:	100 % testado
FUCÇÃO:	Reduzir o choque	Marca registrada:	Guomat
Serviço pós-venda:	12 meses	Temperatura de trabalho:	-40 ℃+70 ℃
Yokohama.:	S-300-4R	Cor:	Preto
Destacar:	Yokohama industrial air spring , 206mm natural height air spring , air rubber spring with waist ring

S-300-4R YOKOHAMA Industrial Air Spring 206mm Natural Height Air Rubber With Waist Ring

Part Number
AIRSUSTECH Part No.: F-300-4
YOKOHAMA S-300-4R
YOKOHAMA S 300 4R
YOKOHAMA S-300-4

Product Application

Automation technology
Conveyor systems
Agricultural machinery
Food industry
Paper and textile equipment
Pantograph drives
Sawmill machinery
Punch and forming presses
Bellow paper machine equipment

GUOMAT \| YOKOHAMA	Height H (mm)	Common Max.Stroke	Compression Max OD	Approximate values at standard height and internal pressure of 0.49 MPa	Use maximum internal pressure
F-300-4 \| S-300-4	206	326	111	±80	360
F-300-3 \| S-300-3	152	242	82	±60	360
F-300-2 \| S-300-2	98	158	53	±40	360
F-300-1 \| S-300-1	72	117	40	±30	400

Advantages Compared to Mechanical Springs

Constant pressure: Within its stroke range, air springs provide a very stable force, while the force of a mechanical spring varies with compression.
Adjustable pressure: Output force can be easily changed by simply adjusting the intake pressure, adapting to different molds and processes.
Long stroke: Compared to a mechanical spring of the same size, air springs have a longer effective working stroke.
Long lifespan: High-quality air springs can last for millions of cycles, far exceeding the lifespan of mechanical springs.
Flexible installation: Compact design, easy to arrange in molds.

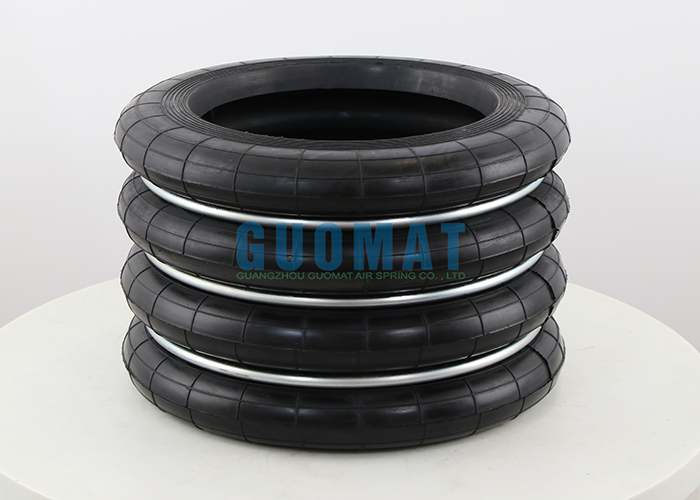

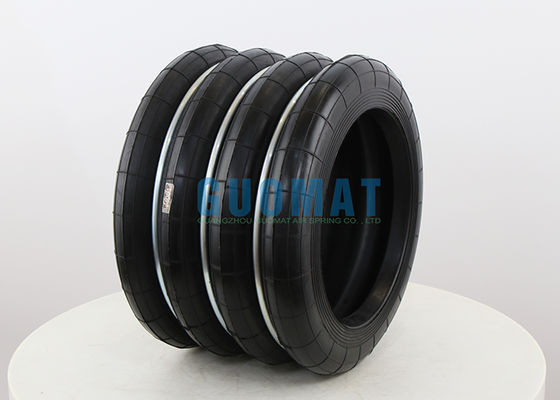

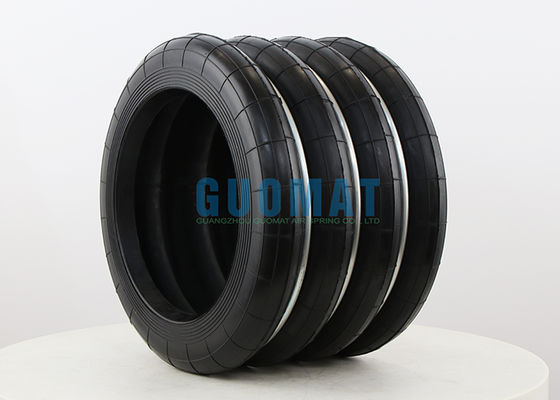

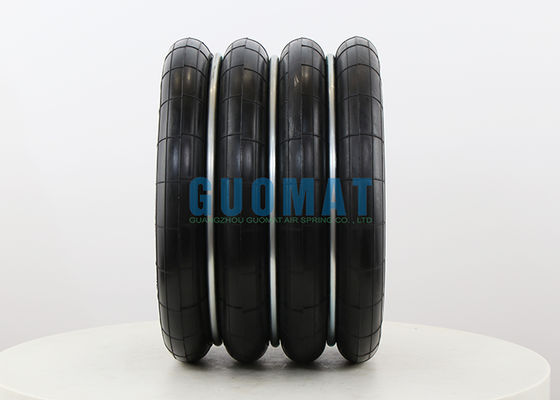

Product Images
