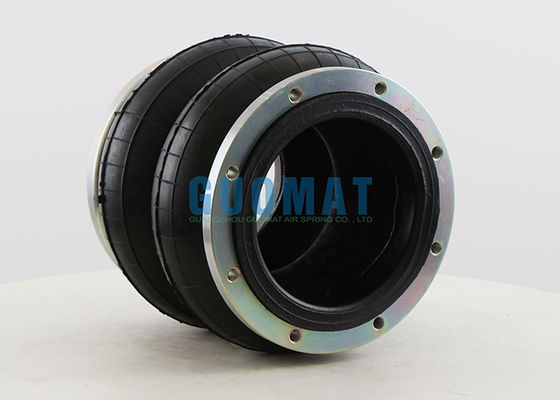

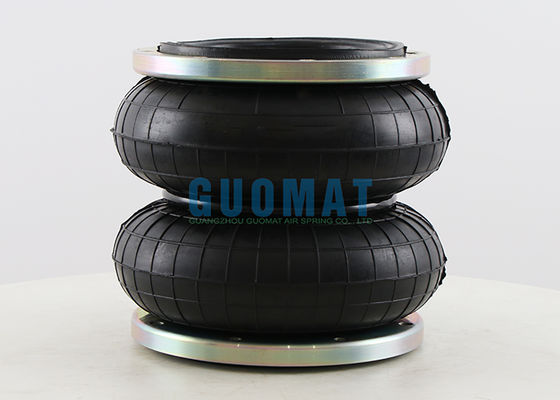

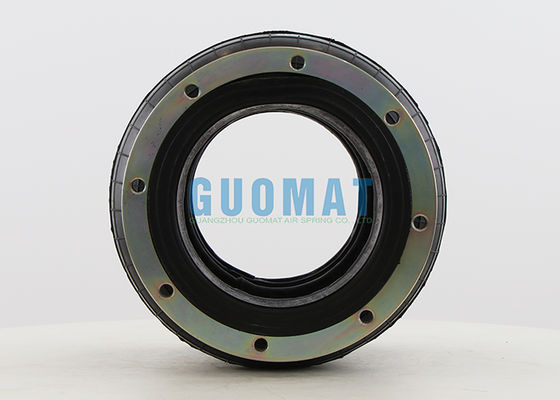

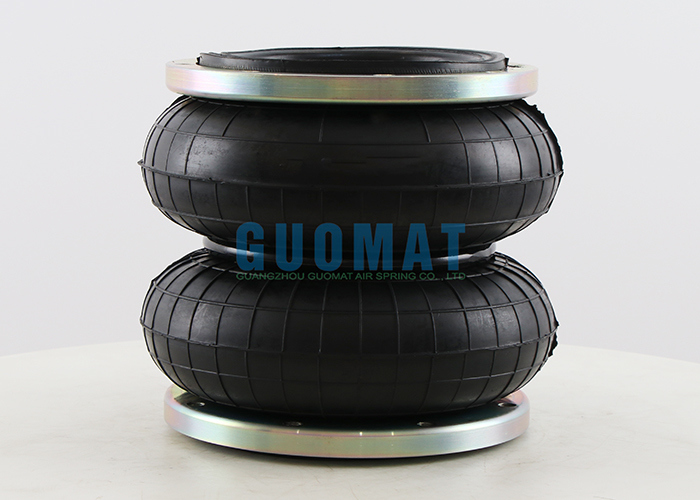

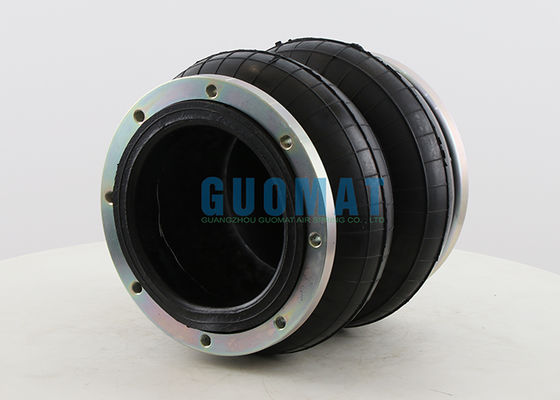

Universal Air Lift Bag 245 Model 93740 Double Convoluted Air Spring For Industrial Machine

Detalhes do produto:

Lugar de origem:	Cantão, China
Marca:	GUOMAT
Certificação:	ISO/TS16949:2009
Número do modelo:	2H250180

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	6pcs
Preço:	$139.9-149.9/pc
Detalhes da embalagem:	caixa de caixa forte ou como os clientes precisam
Tempo de entrega:	2-8 dias de trabalho
Termos de pagamento:	L/C, T/T, Western Union
Habilidade da fonte:	1000pcs/semana

Contato

Descrição de produto detalhada

Nome do produto:	Mola pneumática industrial/airbags/balões de ar/elevador de ar	Material:	Borracha da qualidade da altura
Garantia:	12 meses	OEM:	Disponível
Cross No.:	Modelo Tor-Press 245	Padrão:	93740
Convoluções:	2	Furos de conexão:	M 8 x 1,25
Destacar:	Universal Air Lift Bag 245 , Double Convoluted Air Spring , Industrial Machine Air Spring

Universal Air Lift Bag 245 Model 93740 Double Convoluted Air Spring For Industrial Machine

Brand: GUOMAT

Model: 2H250180

Replace Tor-press 245

Replace Standard Code 93740

Technical Data

Connection	F1
Max.OD	270 mm
Min.Height	85 mm
Max.Height	245 mm
Static Height	165 mm
Effec.Area	169 cm2
Cap.	1150 daN
Freq.	127 cicli/1'
Stiffness	12 DaN/mm
Threaded Air Hole	-
Center Distance of Holes	145 mm
Flange Diameter	200 mm
Connecting Number	8pcs
Bolts or Holes	M8X1.25

Total Travel	225mm
Thrusts Max.	2680daN
Thrusts Min.	740daN

Thrusts in daN Pressures P=0.6 MPa (6 bar) Based On Travel	Travel in mm
2680	(0)
2620	(20)
2560	(40)
2460	(60)
2320	(80)
2160	(100)
1960	(120)
1760	(140)
1540	(160)
1300	(180)
1060	(200)
810	(220)

How Do Air Springs with Flange Connections Operate?

Simply put, flange-connected air springs change their internal air pressure by filling and expelling compressed air, thus achieving functions such as height adjustment, load support, and vibration damping/isolation.

Inflation (Raising/Loading)

Compressed air is filled into the air chamber, increasing the internal pressure. This causes the air chamber to expand, increasing its height and thus lifting the load above it, providing rigid support.

Deflation (Lowering/Unloading)

The compressed air is released from the air chamber, decreasing the internal pressure. The air chamber contracts under the weight of the load, lowering its height, and the load decreases accordingly.

Maintaining (Constant Support)

After filling with an appropriate amount of air, the system is closed to maintain a constant internal air pressure, thus providing a stable support height and load-bearing capacity.
