1B8-580 Goodyear Air Suspension Spring Assembly W01-358-7598 Firestone Rubber Air Shock

1B8-580 Goodyear Air Suspension Spring Assembly W01-358-7598 Firestone Rubber Air Shock

  • 1B8-580 Goodyear Air Suspension Spring Assembly W01-358-7598 Firestone Rubber Air Shock
  • 1B8-580 Goodyear Air Suspension Spring Assembly W01-358-7598 Firestone Rubber Air Shock
  • 1B8-580 Goodyear Air Suspension Spring Assembly W01-358-7598 Firestone Rubber Air Shock
  • 1B8-580 Goodyear Air Suspension Spring Assembly W01-358-7598 Firestone Rubber Air Shock
1B8-580 Goodyear Air Suspension Spring Assembly W01-358-7598 Firestone Rubber Air Shock
Detalhes do produto:
Lugar de origem: Cantão, China
Marca: GUOMAT
Certificação: ISO/TS16949:2009
Número do modelo: 1B8X6
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 6pcs
Preço: $49.9-59.9/pc
Detalhes da embalagem: caixa de caixa forte ou como os clientes precisam
Tempo de entrega: 2-8 dias de trabalho
Termos de pagamento: T/T, Western Union, L/C
Habilidade da fonte: 1000pcs/semana
Contato
Descrição de produto detalhada
Material: Borracha e aço Garantia: 12 meses
Função: Reduzir o choque Tipo de borracha: Borracha natural
Nome do produto: Mola pneumática/Fole de ar/Airbag Golpe de trabalho: 120mm
Encaixe de ar: 1/4-18NPT Goodyear: 1B8-580
Destacar:

Goodyear air suspension spring assembly

,

Firestone rubber air shock

,

industrial air spring with warranty

1B8-580 Goodyear Air Suspension Spring Assembly W01-358-7598 Firestone Rubber Air Shock
Product Description

Industrial Air Spring

GUOMAT Number 1B8X6
Working Temperature -40℃ to +70℃
Failure Testing ≥3 millions
Technical Data
  • Top Cover Plate Diameter: 135mm
  • Bottom Cover Plate Diameter: 135mm
  • Gas Hole / Air inlet: 1/4-18NPT
  • Rubber Bellows Natural Diameter: 190mm
  • The Working Stroke: MAX 180 mm to MIN 60 mm
  • Top Cover Plate Screw (Nut) Tooth: 2X3/8-16UNC
  • Bottom Cover Plate Screw (Nut) Tooth: 2X3/8-16UNC
  • Screw Center Distance of Top Cover Plate: 70mm
  • Screw Center Distance of Bottom Cover Plate: 70mm
Notice: These air suspension bags are aftermarket ones. They will replace the original air spring bags. Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts. Instruction isn't included. Professional installation is recommended. Contact us please for whatever we can help.
OEM Numbers
GOODYEAR Air Spring Part Number: 1B8-580
GOODYEAR Air Spring Part Number: 1B 8-580
GOODYEAR Air Spring Part Number: 1B8 580
GOODYEAR Air Spring Part Number: 1B8580
FIRETSONE Air Bags Part Number: W01-358-7598
FIRETSONE Air Bags Part Number: W01 358 7598
FIRETSONE Air Bags Part Number: W013587598
FIRETSONE Bellows Part Number: Style 116-1
FIRETSONE Air Bags Part Number: W01-358-7605
FIRETSONE Air Bags Part Number: W01 358 7605
FIRETSONE Air Bags Part Number: W013587605
Force Table
Assembly Height (in.) Volume@100PSIG (in3) Pounds Force @20PSIG @40PSIG @60PSIG @80PSIG @100PSIG
6.0 237 360 750 1150 1580 2090
5.0 210 540 1100 1650 2240 2920
4.0 178 650 1330 2000 2710 3490
3.0 139 710 1450 2200 2980 3810
Applications of Air Springs in Paper Filter Presses
  1. As a "Smart" Pressure Source: Multiple air chambers are arranged along the axial direction of the pressure roller, allowing for independent pressure control. This precisely compensates for the natural curvature of the roller, ensuring uniform pressure across the entire paper web and significantly improving the uniformity of paper quality.
  2. As an Elastic Buffer: The flexibility of air springs effectively absorbs the impact from paper web joints or thickness fluctuations, protecting the equipment and reducing paper breaks. It also allows for more flexible pressure adjustment, quickly adapting to different paper types and production needs.
Product Images

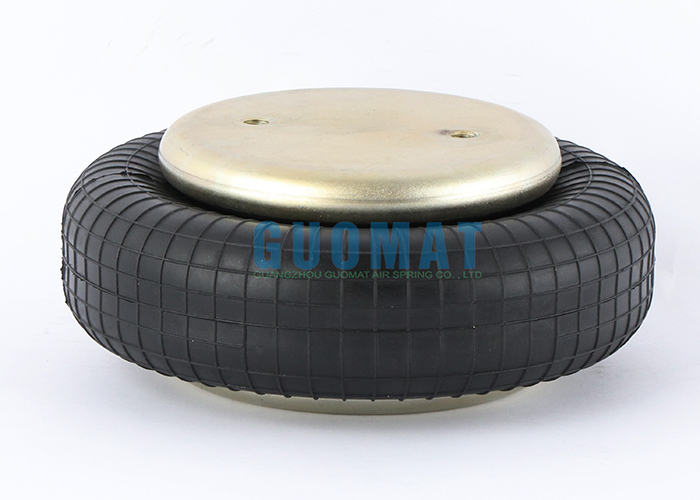

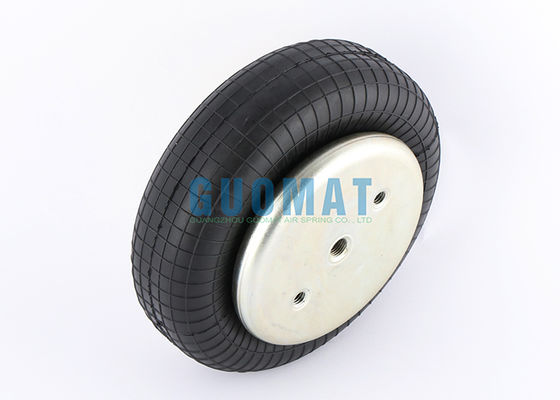

1B8-580 Goodyear Air Suspension Spring Assembly W01-358-7598 Firestone Rubber Air Shock 0 1B8-580 Goodyear Air Suspension Spring Assembly W01-358-7598 Firestone Rubber Air Shock 1
