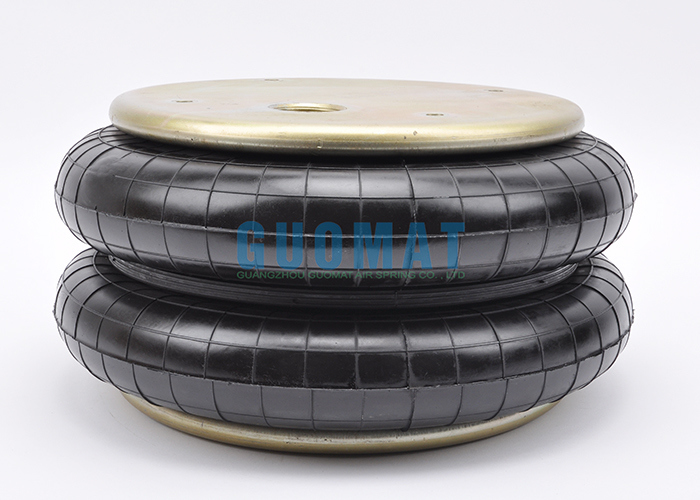

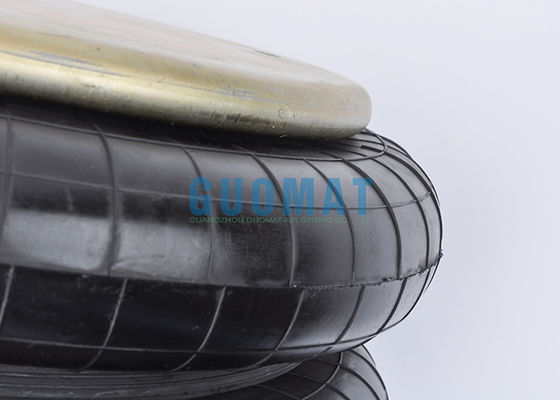

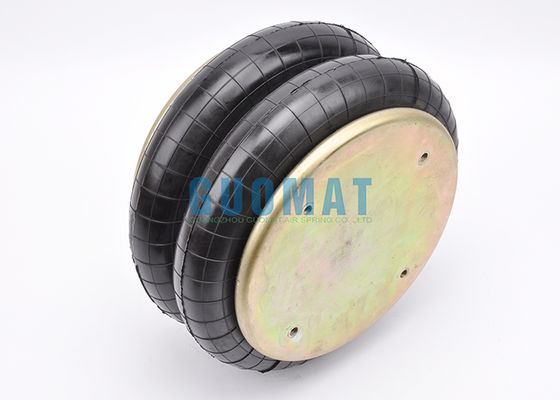

W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring

Detalhes do produto:

Lugar de origem:	Cantão, China
Marca:	GUOMAT
Certificação:	ISO/TS16949, ISO9001
Número do modelo:	2B6107

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1
Preço:	US$59.9-69.9/PC
Detalhes da embalagem:	Caixa de caixa forte ou requisito de clientes
Tempo de entrega:	5-8 dias úteis
Termos de pagamento:	L/C, D/A, D/P, Western Union
Habilidade da fonte:	1000pcs/semana

Contato

Descrição de produto detalhada

Qualidade:	100 % testado	Serviço Pós-Venda:	12 meses
Hole do ar:	1/4 de BSP	Firestone:	W01-M58-6107
Convoluções:	2	Método de conexão:	Porcas cegas
Max.Height:	394mm	Mínimo, Altura:	77mm
Destacar:	Firestone Suspension Air Spring , Double Convoluted Air Spring , 1/4 BSP Rubber Bellows

W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring

The GUOMAT 2B6107 is a double-curved air spring with the exact same specifications as the Firestone W01-M58-6107. Its signature "gourd-shaped" design provides excellent stability and flexible travel through a central waist ring.

It is primarily used in the suspension systems of commercial vehicles such as buses and trucks. Its core function is to dampen road vibrations, automatically adjust the vehicle height, thereby improving ride comfort, protecting cargo, and maintaining vehicle stability. This is a highly reliable component designed specifically for heavy-duty operating conditions.

Product Characteristics

Cover Plate

Top Cover Plate Diameter	287 mm
Screw Center Distance of Top Cover Plate	159 mm
Bottom Cover Plate Diameter	287 mm
Screw Center Distance of Bottom Cover Plate	159 mm

Nut/Blind Nuts

Top Cover Plate Threaded Hole	M8X1.25
Bottom Cover Plate Screw(Nut) Tooth	M8X1.25

Gas Hole/Air Inlet/Air Fitting

Air Hole

1/4BSP

Rubber Bellow

Rubber Bellow Max. Diameter	394 mm
Minimum Height	77 mm
Maximum Height	394 mm

Part Number Model

FIRESTONE OEM NUMBER: W01-M58-6107

FIRESTONE OEM NUMBER: W01 M58 6107

FIRESTONE OEM NUMBER: W01M586107

FIRESTONE OEM NUMBER: 233-2

Assembly Height (mm)	Volume@7 BAR (cu cm)	kN Force	@3BAR	@4BAR	@5BAR	@6BAR	@7BAR
320	26307	560	14.44	50.52	26.35	33.20	39.23
280	23714	653	17.82	24.56	31.24	38.87	45.73
240	20846	729	20.39	27.85	35.13	43.41	51.04
200	17673	799	22.69	30.81	38.73	41.65	55.94
160	14250	859	24.68	33.30	41.87	51.34	60.11
120	10748	892	25.94	34.86	43.76	53.44	62.41
80	6382	889	26.62	35.40	44.31	53.60	62.25
