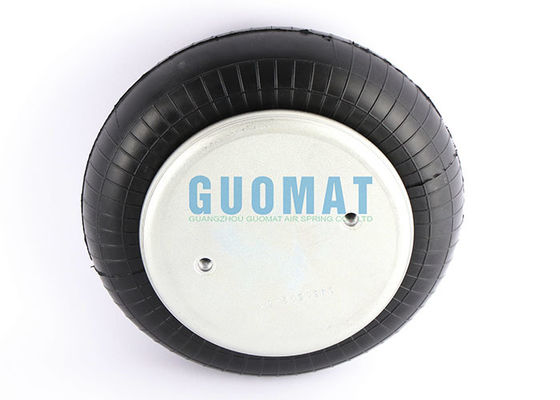

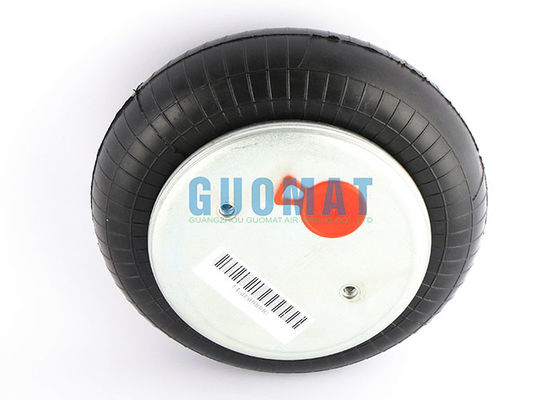

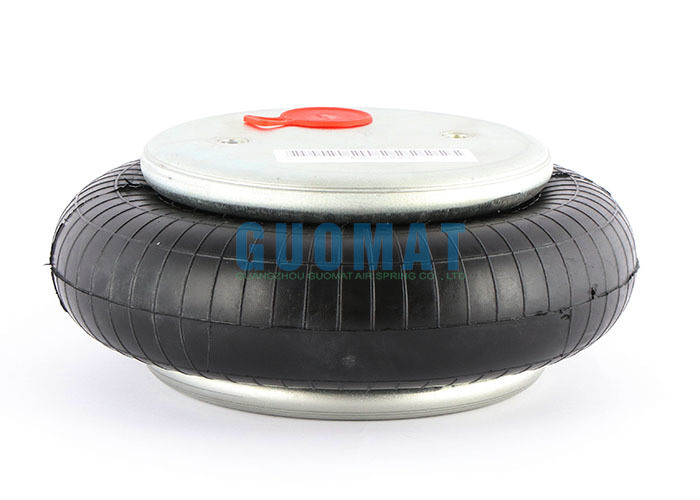

SP 1B 12-1 Phoenix Industrial Air Bags FS 200-10 Contitech Rubber Air Spring G3/4 Gas-filled

Detalhes do produto:

Lugar de origem:	Guangdong, China
Marca:	GUOMAT
Certificação:	ISO/TS16949:2009
Número do modelo:	1B200-10

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	6pcs
Preço:	$49.9-59.9/pc
Detalhes da embalagem:	caixa de caixa forte ou como os clientes precisam
Tempo de entrega:	2-8 dias de trabalho
Termos de pagamento:	T/T, Western Union, L/C
Habilidade da fonte:	1000pcs/semana

Contato

Descrição de produto detalhada

Material:	Borracha e aço	Garantia:	12 meses
Função:	Reduzir o choque	Número do fole:	1B12
FÊNIX:	SP1B12/SP1B12-1	Firestone:	W01-M58-6374
Encaixe de ar:	G3/4	Parafuso:	M8X1.25
Destacar:	Phoenix industrial air spring , Contitech rubber air spring , G3/4 gas-filled air spring

SP 1B 12-1 Phoenix Industrial Air Bags FS 200-10 Contitech Rubber Air Spring G3/4 Gas-filled

Product Description

Product Name: Industrial Air Spring

Model No.: 1B200-10

Production Place: GuangDong, China

Warranty: 1 Year Warranty

Material: Natural Rubber and Steel

Package: Strong Brown Carton

Scope of Application: Sports Equipment, Precision Instruments, Experimental Equipment, Test Bench Equipment, etc.

Bearing Range: 50-500KG

GUOMAT 1B200-10 Replaces These Air Springs (Air Bags)

ContiTech: Fs 200-10 60030
ContiTech: FS 200-10 1/4 M8
ContiTech: FS 200-10 G1/4 M8
ContiTech: FS 200-10 Cl G1/4
ContiTech: Fs 200-10 Cl G1/4 M8
ContiTech:Fs 200-10 CI/FS200-10C1/FS20010C1
ContiTech Bellow:FS 200-10/FS200-10/FS20010
Firestone No.: w01-M58-6375/W01 M58 6375/WO1M586375
Firestone Style: 115
Bosch: 822419009
Weforma:WBE 400-E2/WBE400-E2/WBE400E2
Weforma: WBE 410-E1/WBE410-E1/WBE410E1
Airtech: 111006
Airtech Ref: 1B-220/1B 220/1B220

Detailed Technical Parameters

Parameter	Value
Top Cover Plate Diameter	160mm
Bottom Cover Plate Diameter	160mm
Gas Hole / Air inlet	G3/4
Rubber Bellows Natural Diameter	220mm
The Working Stroke	MAX 180 mm to MIN 57 mm
Top Cover Plate Screw (Nut) Tooth	2XM8X1.25
Bottom Cover Plate Screw (Nut) Tooth	2XM8X1.25
Screw Center Distance of Top Cover Plate	89mm
Distance From Screw to Air Hole	38mm
Screw Center Distance of Bottom Cover Plate	89mm

Air Spring Installation Process for Industrial Washing Machines

Step	Core Action	Key Point
1. Prepare	Power off and disconnect water. Use a jack to lift each corner of the machine one at a time. Remove the old feet.	Safety first! Only lift one corner at a time and secure it with blocks.
2. Install	Position the air springs. Use bolts to secure the top end firmly to the machine's base.	The bottom end usually just needs to sit flat on the floor.
3. Connect	Use air hoses to connect the air inlets of all four air springs in a series.	This ensures equal air pressure across the system.
4. Level	Inflate the springs slowly and remove the jack. Use a spirit level and adjust air pressure until the machine is perfectly level.	This is the most critical step for vibration reduction.
5. Test	Inflate to the specified pressure. Run a high-speed spin cycle first empty, then with load, to check for stability.	Once set, no further adjustment is needed for normal operation.
