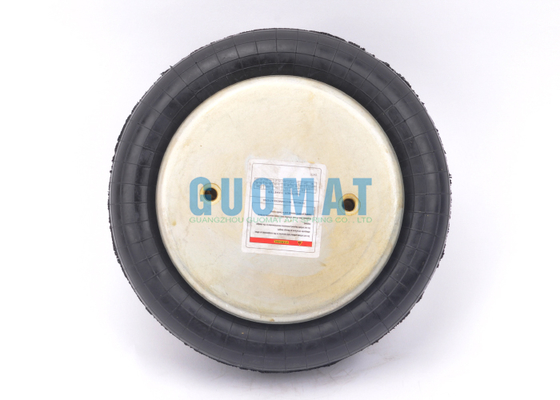

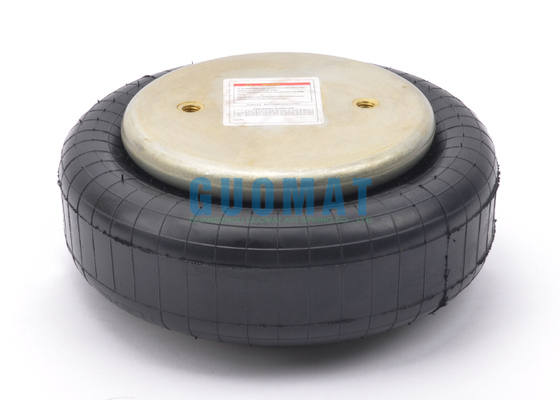

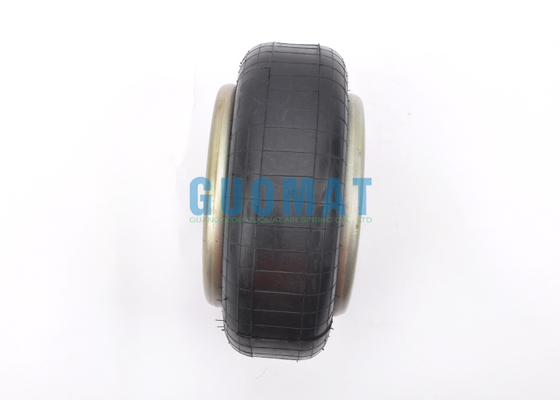

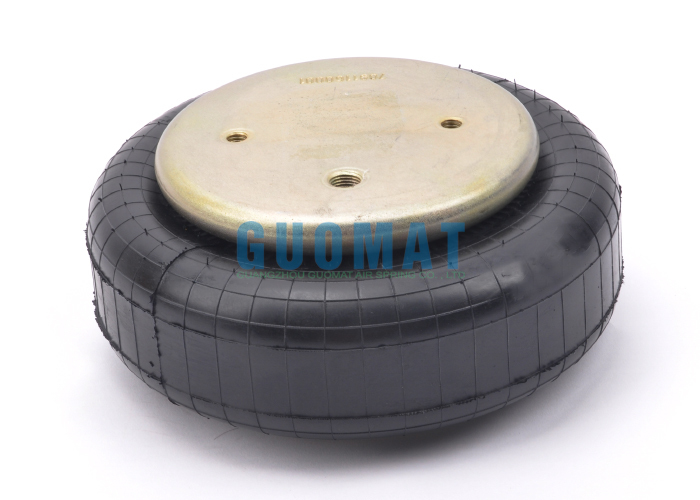

1B9X5 Convoluted Air Spring Replacement 1B9-202 Goodyear Inflatable Airbag

Detalhes do produto:

Place of Origin:	GuangDong, China
Marca:	GUOMAT
Certificação:	ISO/TS16949:2009
Model Number:	1B9X5

Condições de Pagamento e Envio:

Minimum Order Quantity:	6PCS
Preço:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contato

Descrição de produto detalhada

Product Name:	Industrial Air Spring	Warranty:	1 Year
Material:	Rubber + Steel	Packing:	Brown Carton
Color:	Black	Goodyear:	1B9-202
Convolutions:	1	Application:	Large Drying Machines
Destacar:	Goodyear inflatable air spring , 1B9X5 replacement airbag , industrial air spring with warranty

1B9X5 Convoluted Air Spring Replacement 1B9-202 Goodyear Inflatable Airbag

Product Specifications

Attribute	Value
Product Name	Industrial Air Spring
Warranty	1 Year
Material	Rubber + Steel
Packing	Brown Carton
Color	Black
Goodyear	1B9-202
Convolutions	1
Application	Large Drying Machines

Product Details

Product Name	Industrial Air Spring
Warranty	1 Year
Place of Origin	GuangDong China
Brand Name	GUOMAT
Certification	ISO/TS16949:2009
Model No.	1B9x5
Condition	New
Other Name	Convoluted Rubber Air Spring

Cross Reference Information

Goodyear Part Number: 1B9-202

Goodyear Part Number: 1B 9-202

Goodyear Part Number: 1B9 202

Goodyear Part Number: 1B9202

Goodyear Bellows Number: 578913201

Goodyear Bellows Number: 578 91 3 201

Goodyear Bellows Number: 578-91-3-201

Enidine Part Number: YI1B9-202

Enidine Part Number: YI 1B9-202

Technical Data

Air Port Thread Diameter: 1/4 in

Air Port Thread Standard: UNC

Air Port Thread Type: 1/4 UNC

Bumper Type: None

Diameter at 100 psi: 11 in

End Plate Diameter: 6.4in

Force At Max Stroke At 100 Psi: 2850 lbs

Height Range: 4-1/2 to 5 in

Load Range at 100 psi: 3200 to 3900 lbs

Spring Style: Single Convolute

Stroke: 2.90 in

System Natural Frequency: 2.50 Hz

Tap Spacing: 3-1/2 in

Goodyear Single Bellow Air Springs

Goodyear Number	Top Plate Hole/Stud Qty	Bottom Plate Hole/Stud Qty	Top Plate Dia.	Bottom Plate Dia.	Collapsed Height	Flexmember	Piston	Piston Type
1B12-301	3	2	9	9	2.6	578-91-3-301	-	-
1B12-305	3	2	9	9	2.6	578-91-3-301	-	-
1B14-358	5	4	11.3	11.3	2.3	578-91-3-352	-	-
1B14-350	5	4	11.3	11.3	2.5	578-91-3-351	-	-
1B14-351	5	4	11.3	11.3	4.18	578-91-3-351	-	-
