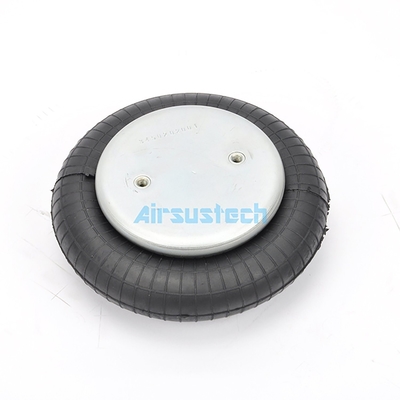

EB-215-80 Air Springs Replacement FS120-9 Convoluted Rubber Industrial Air Balloon

EB-215-80 Air Springs Replacement FS120-9 Convoluted Rubber Industrial Air Balloon

Product Description

Brand: GUOMAT

Model Number: 1B120-9

Warranty: 1 Year

Material: Rubber+Steel

Can Replace The Following Manufacturer Number:

Firestone: W01-M58-6165

Contitech: FS 120-9

Dunlop(FR): 8''x1 S08101

Bosch: 822419003

Festo EB-215-80

Norgren: PM/31081 (8X1)

Weforma: WBE 300-E1

Airtech: 140293

Airtech: 111003

Airtech: 1B-190FB

Negatech: 1S120-9 3/4 M8

Specifications and Detailed Technical Parameters

Nut/blind nut

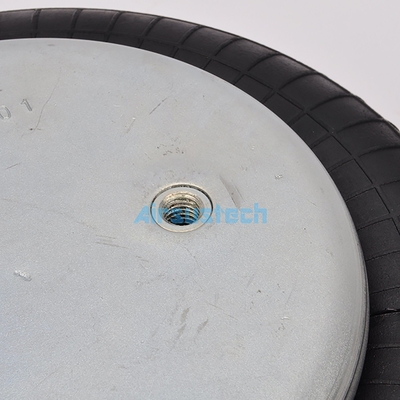

Top plate screw (nut) teeth: 2XM8x1.25

The screw center distance of the top cover plate: 70mm

Screw (nut) teeth of the bottom cover plate: 2XM8x1.25

The screw center distance of the bottom cover plate: 70 mm

Air hole/air inlet/air fittings

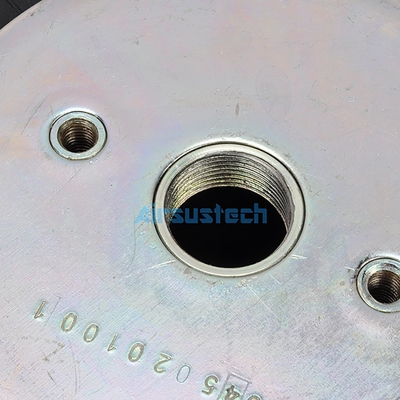

Air hole/air inlet: G3/4

The screw center distance between the air hole and the nut: 30mm

Cover plate

Top plate diameter: 135 mm

Diameter of the bottom cover: 135 mm

Bell rubber bellows

Maximum diameter of rubber bellows: 215 mm

Natural diameter of rubber bellows: 90 mm

Working stroke: minimum 50 mm to maximum 115 mm

Maximum height: 115 mm

Minimum height: 50 mm

Bumper block/bumper block

No bumper block

Belt loop/Belt loop/Girdle hoop

Without belt loop/girdle hoop

Min. pressure: 0 bar

Return force to min.height: ≤200N

Overall weight with clamped plates: 2.0kg

Vibration isolation - dynamic characteristic values

Design Height H: recommended 110mm, minimum 90mm

Pneumatic application-static characteristic values

Force F[KN]

The Main Functions of Air Springs in Agricultural Sprayers

1. Shock Absorption and Cushioning

Machine Protection: Large sprayers are subject to significant bumps and vibrations when operating in rugged fields. Air springs effectively absorb and cushion these impacts, protecting the sprayer's main beam, boom, hydraulic system, and precision components, reducing failure rates and repair costs.

Crop Protection: A smooth ride reduces damage to crops caused by the machine, especially in mid- to late-stage crops.

2. Maintaining a Level Chassis

Constant Ground Clearance: Regardless of the sprayer's load (a full tank can vary by several tons from empty), air springs automatically maintain a stable chassis height by adjusting internal air pressure.

Ensuring Operational Stability: A level chassis ensures the boom maintains a predetermined height above the ground, which is crucial for uniform spraying. If the chassis tilts, with one side of the boom higher than the other, uneven spray distribution will occur.

3. Improved Operator Comfort

For modern sprayers with comfortable cabs, air spring suspension significantly reduces vibration and noise transmitted to the cab, alleviating operator fatigue and improving efficiency and safety during extended operations.

4. Protecting the Boom System

This is one of the most critical functions. The boom is connected to the chassis via a linkage or directly. Severe vibrations can be directly transmitted to the boom, causing:

Mechanical damage: Fatigue and fracture of the boom structure.

Degraded spraying quality: Violent up-and-down movement of the boom can cause overlapping or missed sprays, seriously impacting spraying results.

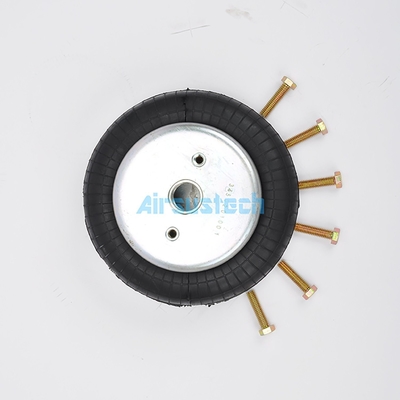

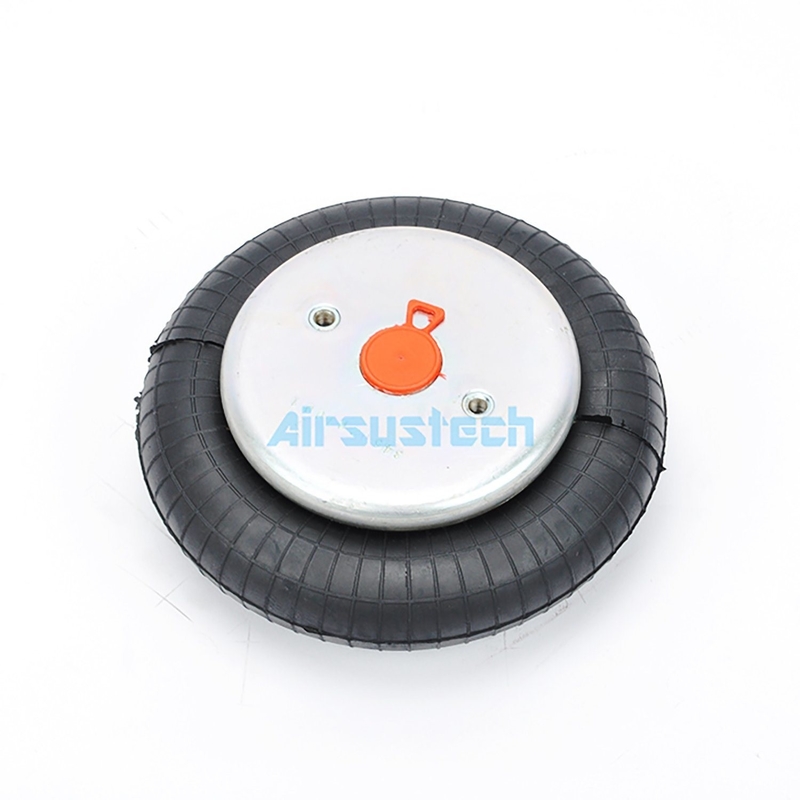

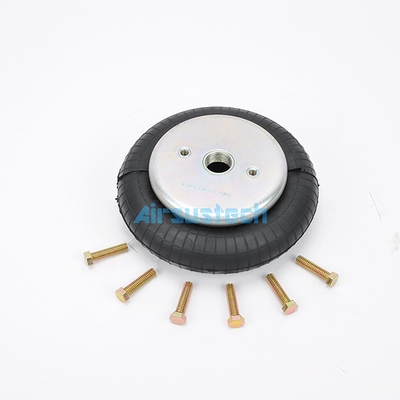

The photos of 1B1209
